Roofs Applied Hot Dip Galvanized Steel Coil DX51D+Z Steel Sheets For Construction

Certification
China LINKIN MERCHANDISE LIMITED certification
I'm Online Chat Now

Roofs Applied Hot Dip Galvanized Steel Coil DX51D+Z Steel Sheets For Construction

Roofs Applied Hot Dip Galvanized Steel Coil DX51D+Z Steel Sheets For Construction
Roofs Applied Hot Dip Galvanized Steel Coil DX51D+Z Steel Sheets For Construction Roofs Applied Hot Dip Galvanized Steel Coil DX51D+Z Steel Sheets For Construction Roofs Applied Hot Dip Galvanized Steel Coil DX51D+Z Steel Sheets For Construction Roofs Applied Hot Dip Galvanized Steel Coil DX51D+Z Steel Sheets For Construction

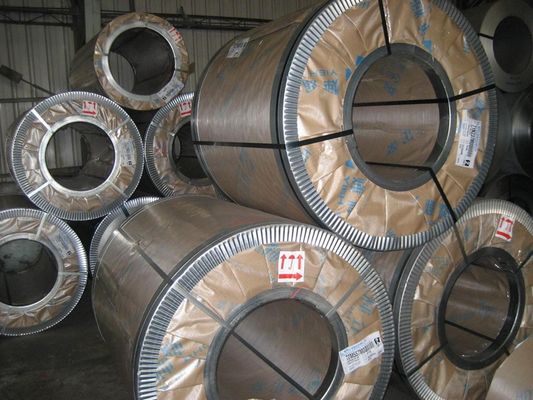

Large Image :  Roofs Applied Hot Dip Galvanized Steel Coil DX51D+Z Steel Sheets For Construction

Product Details:

Place of Origin: China (Mainland)
Brand Name: Sincere
Certification: CE & SGS

Payment & Shipping Terms:

Minimum Order Quantity: 25 MT
Price: US $ 600-800 / MT
Packaging Details: Standard seaworthy packing for international delivery
Delivery Time: 10-30 days
Payment Terms: T/T or L/C
Supply Ability: 10000 Ton/Tons per Month
Detailed Product Description
Name: Hot Dip Galvanized Coils Type: Steel Coil
Technique: Cold Rolled Surface Treatment: Galvanized
Application: Construction & Base Metal Width: 600-1500mm
High Light:

galvanized steel roof panels

,

welding galvanized steel

Roofs Applied Hot Dip Galvanized Steel Coil DX51D+Z Steel Coils / Sheets For Construction

Quick Details



  • Standard:ASTM,BS,DIN,JIS, EN
  • Grade:DX51D+Z
  • Thickness:0.15-4.0mm
  • Place of Origin:China (Mainland)
  • Brand Name: Sincere
  • Model Number:DX51D+Z
  • Length:Steel Coil
  • Description:Galvanized Steel Coil
  • Base Metal:DC01
  • Available Dipped Layers:50-275g/m2
  • Inner Diameter:508-610mm
  • Available Surface Treatment:Passivating & Oiling & AFP & Filming
  • HS Code:72104900
  • Approved Certificate:CE & SGS

Specifications



Galvanized Steel Coil
1.ISO9001 approved
2.High adhesivenees and preciseness
3.Excellent mechanical property




Roofs Applied DX51D+Z Galvanized Steel Coils and Sheets



Brief Introduction

Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.

The Protection Principle

1. Anodic reaction: Zn-2e=Zn2+

(The alloy coating loses electron, sacrificing itself in dissolution.)

2. Cathodic reaction: Fe2++2e=Fe

(Fe gains electron reaction, being protected)



Specification

1. Thickness: 0.15-4.0mm

2. Width: 600-1500mm

3. Inner Diameter: 508mm

4. Weight of Steel Coil: 3-18MT

5. Coating Type: Pure Zinc

6. Available Dipped Layer: 50-275g/m2

7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle

8. Available Surface Treatment: Passivating & Oiling & AFP & Filming



Mechanical Properties



Grades

Mechanical Property

Coating Adhesion

Yield StrengthMPa

Tensile StrengthMPa

Elongation%

Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness)

La=80mm b=20(mm)

At Following nominal Thickness ( mm)

≤0.7

>0.7

≤140/140

>140/140-175/175

>175/175

DX51D+Z

140-350

270-500

20

22

0a

1a

2a

DX52D+Z

140-300

270-420

24

26

0a

1a

2a

DX53D+Z

140-260

270-380

28

30

0a

1a

2a





Application

1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds

2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts

3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway

4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine
