CS Type C Hot Dip Galvanized Steel Coil With Pure Zinc 600mm - 1500mm Width

Certification
Good quality Hot Dip Galvanized Steel Coil for sales
I'm Online Chat Now

CS Type C Hot Dip Galvanized Steel Coil With Pure Zinc 600mm - 1500mm Width

China CS Type C Hot Dip Galvanized Steel Coil With Pure Zinc 600mm - 1500mm Width supplier
CS Type C Hot Dip Galvanized Steel Coil With Pure Zinc 600mm - 1500mm Width supplier CS Type C Hot Dip Galvanized Steel Coil With Pure Zinc 600mm - 1500mm Width supplier CS Type C Hot Dip Galvanized Steel Coil With Pure Zinc 600mm - 1500mm Width supplier CS Type C Hot Dip Galvanized Steel Coil With Pure Zinc 600mm - 1500mm Width supplier

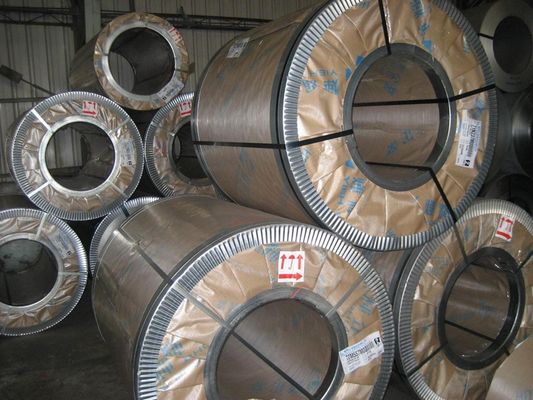

Large Image :  CS Type C Hot Dip Galvanized Steel Coil With Pure Zinc 600mm - 1500mm Width

Product Details:

Place of Origin: China (Mainland)
Brand Name: Sincere
Certification: CE & SGS

Payment & Shipping Terms:

Minimum Order Quantity: 25 MT
Price: US $ 600-800 / MT
Packaging Details: Standard seaworthy packing for international delivery
Delivery Time: 10-30 days
Payment Terms: T/T or L/C
Supply Ability: 10000 Ton/Tons per Month
Contact Now
Detailed Product Description
Name: Ppgi Steel Coil Min: 25 MT
Price: US $ 600-800 / MT Standard: ASTM,BS,DIN,JIS, EN

CS Type C Hot Dip Galvanized Steel Coil With Pure Zinc 600mm - 1500mm Width

Quick Details

  • Grade: CS Type C
  • Thickness:0.15-4.0mm
  • Place of Origin:China (Mainland)
  • Brand Name: Sincere
  • Model Number:CS Type C
  • Type:Steel Coil
  • Technique:Cold Rolled
  • Surface Treatment:Galvanized
  • Application:Construction & Base Metal
  • Width:600-1500mm
  • Length:Steel Coil
  • Description:Galvanized Steel Coil
  • Base Metal: CS
  • Available Dipped Layers:50-275g/m2
  • Inner Diameter:508-610mm
  • Available Surface Treatment:Passivating & Oiling & AFP & Filming
  • HS Code:72104900
  • Approved Certificate:CE & SGS





Window Blinds and Fencings Applied Hot Dip Galvanized Steel Coils



Brief Introduction

Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.

The Protection Principle

1. Anodic reaction: Zn-2e=Zn2+

(The alloy coating loses electron, sacrificing itself in dissolution.)

2. Cathodic reaction: Fe2++2e=Fe

(Fe gains electron reaction, being protected)



Specification

1. Thickness: 0.15-4.0mm

2. Width: 600-1500mm

3. Inner Diameter: 508mm

4. Weight of Steel Coil: 3-18MT

5. Coating Type: Pure Zinc

6. Available Dipped Layer: 50-275g/m2

7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle

8. Available Surface Treatment: Passivating & Oiling & AFP & Filming



Mechanical Properties



Grades

Mechanical Property

Coating Adhesion

Yield StrengthMPa

Tensile StrengthMPa

Elongation%

Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness)

La=80mm b=20(mm)

At Following nominal Thickness ( mm)

≤0.7

>0.7

≤140/140

>140/140-175/175

>175/175

CS Type C

140-350

270-500

20

22

0a

1a

2a

CS Type A, Type B

140-300

270-420

24

26

0a

1a

2a

FS Type A, Type B

140-260

270-380

28

30

0a

1a

2a
