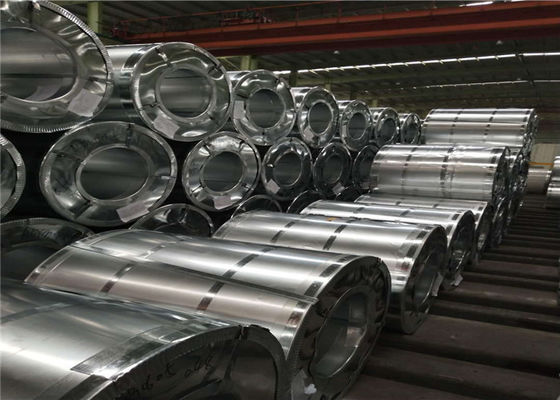

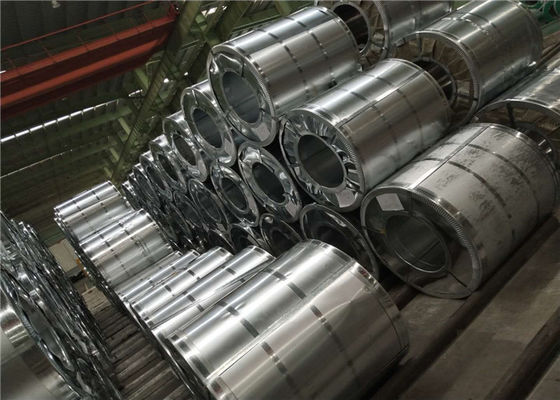

High Adhesivenees CS Type C 610mm Galvanized Sheet Metal Roll
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandard | ASTM,BS,DIN,JIS, EN | Width | 600-1500mm |
---|---|---|---|
Thickness | 0.15-4.0mm | Type | Steel Coil |
Base Metal | CS | Inner Diameter | 610mm |
High Light | CS galvanized sheet metal roll,610mm galvanized sheet metal roll,610mm Galvanized Steel Coil |
CS Type C Galvanized Steel Coil Machinability Galvanized Steel Coils With Thermal Resistance
Galvanized Steel Coil | |
Standard | ASTM,BS,DIN,JIS, EN |
Width | 600-1500mm |
Thickness | 0.15-4.0mm |
Type | Steel Coil |
Technique | Cold Rolled |
Surface Treatment | Galvanized |
Description | Galvanized Steel Coil |
Base Metal | CS |
Inner Diameter | 508-610mm |
HS Code | 72104900 |
Specifications
Galvanized Steel Coil
1.ISO9001 approved
2.High adhesivenees and preciseness
3.Excellent mechanical property
Good Thermal Resistance Machinability Galvanized Steel Coils
Brief Introduction
Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.
The Protection Principle
1. Anodic reaction: Zn-2e=Zn2+
(The alloy coating loses electron, sacrificing itself in dissolution.)
2. Cathodic reaction: Fe2++2e=Fe
(Fe gains electron reaction, being protected)
Specification
1. Thickness: 0.15-4.0mm
2. Width: 600-1500mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-18MT
5. Coating Type: Pure Zinc
6. Available Dipped Layer: 50-275g/m2
7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle
8. Available Surface Treatment: Passivating & Oiling & AFP & Filming
Mechanical Properties
Grades |
Mechanical Property |
Coating Adhesion |
|||||
Yield StrengthMPa |
Tensile StrengthMPa |
Elongation% ≥ |
Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness) |
||||
La=80mm b=20(mm) |
|||||||
At Following nominal Thickness ( mm) |
|||||||
≤0.7 |
>0.7 |
≤140/140 |
>140/140-175/175 |
>175/175 |
|||
CS Type C |
140-350 |
270-500 |
20 |
22 |
0a |
1a |
2a |
CS Type A, Type B |
140-300 |
270-420 |
24 |
26 |
0a |
1a |
2a |
FS Type A, Type B |
140-260 |
270-380 |
28 |
30 |
0a |
1a |
2a |
Application
1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds
2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts
3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway
4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine
Superiority
1. Good Resistance to Corrosion
2. Qualified Processing Machinability
3. High Thermal Resistance
4. Excellent Reflectivity
5. Inexpensive and effective enough
6. Can be recycled and reused multiple times
