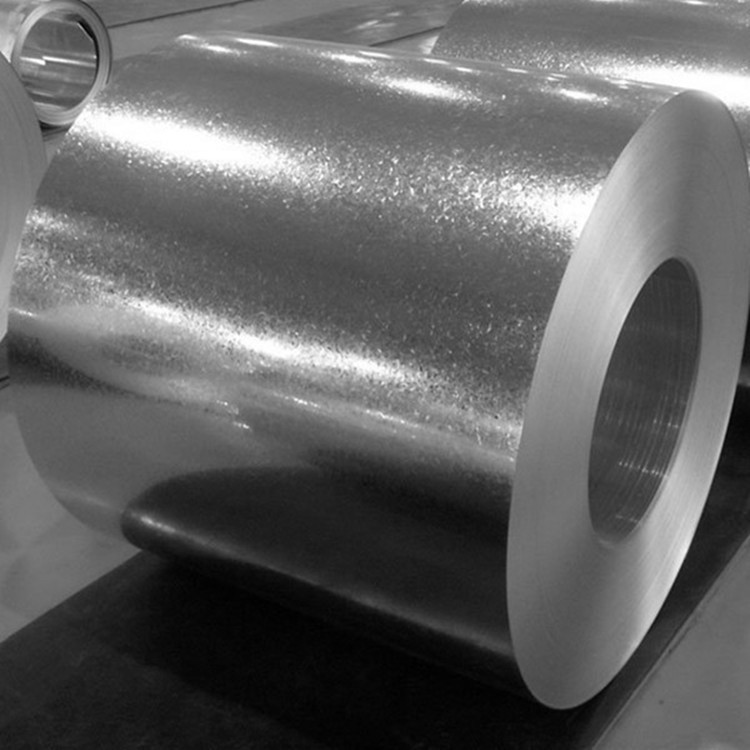

EN10142 Hot Dip Galvanized Steel Coils Stainless Steel CS Zinc Coated

large.img.alt
small.img.alt

Large Image :  EN10142 Hot Dip Galvanized Steel Coils Stainless Steel CS Zinc Coated

Product Details:
Place of Origin: China (Mainland)
Brand Name: Sincere
Certification: CE & SGS
Payment & Shipping Terms:
Minimum Order Quantity: 25 MT
Price: US $ 600-800 / MT
Packaging Details: Standard seaworthy packing for international delivery
Delivery Time: 10-30 days
Payment Terms: T/T or L/C
Supply Ability: 10000 Ton/Tons per Month
Detailed Product Description
Name: Prime Hot Dipped Galvanized Steel Coils Length: Steel Coil
Base Metal: CS Available Dipped Layers: 50-275g/m2
High Light:

hot rolled stainless steel coil

,

Zinc Coated Steel Strip Coils

,

Hot Dipped Zinc Coated Steel Coil

Good Mechanical Property Hot Dip Galvanized Steel Coil , ASTM A653 Standard

ASTM A653 Steel Galvanized Sheet is available in six metallurgical designations, providing different degrees of formability and strength to the base sheet:

● Commercial steel(CS),

● Forming steel(FS),

● Deep drawing steel(DDS),

● Extra deep drawing steel(EDDS),

● Structural steel(SS),

● High strength low alloy steel(HSLA).


Product Name
Zinc Coated Hot Dipped Galvanized Steel Strip / Coil / GI coil
Technical Standard
EN14017, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ
CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Type
Coil/Sheet/Plate/Strip
Thickness
0.12-6.00mm,or customer's requirement
Width
600mm-1500mm, according to customer's requirement
Type of Coating
Hot Dipped Galvanized Steel(HDGI)
Zinc Coating
30-275g/m2
Surface Treatment
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Quality
Approved by SGS,ISO
Coil Weight
3-20 metric ton per coil
Package
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement
Export market
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc


Galvanized Steel Coil
1. ISO9001 approved
2. High adhesivenees and preciseness
3. Excellent mechanical property


Good Mechanical Property ASTM A653 Standard Hot Dipped Galvanized Coil



Brief Introduction

Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.

The Protection Principle

1. Anodic reaction: Zn-2e=Zn2+

(The alloy coating loses electron, sacrificing itself in dissolution.)

2. Cathodic reaction: Fe2++2e=Fe

(Fe gains electron reaction, being protected)





Application

1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds

2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts

3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway

4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine



Superiority

1. Good Resistance to Corrosion

2. Qualified Processing Machinability

3. High Thermal Resistance

4. Excellent Reflectivity

5. Inexpensive and effective enough

6. Can be recycled and reused multiple times
