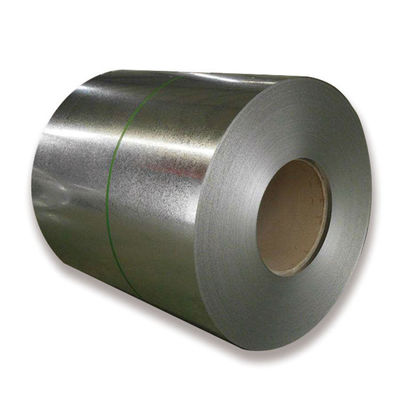

Z275 DX51D Galvanized Steel Coil Hot Dipped 0.15mm

Place of Origin China (Mainland)
Brand Name Sincere
Certification CE & SGS
Minimum Order Quantity 25 MT
Price US $ 600-800 / MT
Packaging Details Standard seaworthy packing for international delivery
Delivery Time 10-30 days
Payment Terms T/T or L/C
Supply Ability 10000 Ton/Tons per Month
Product Details
Standard ASTM,BS,DIN,JIS, EN Grade DX51D+Z
Thickness 0.15-4.0mm Model Number DX51D+Z
Application Construction & Base Metal Width 600-1500mm
Type Steel Coil Description Galvanized Steel Coil
High Light

Galvanized Steel Coil Hot Dipped

,

Z275 Galvanized Steel Coil

,

0.15mm Galvanized Steel Coil

Leave a Message
Product Description

DX51D Hot Dipped Galvanized Steel Coil Z275 Galvanized Steel



Product Name
G550 Z275g Hot dipped galvanized steel coil and strip
Material
G550
Zinc Coating
Z40-275
Coil weight
4-5tons
Coil id
508/610mm
Package
Standard Sea Worthy Package
MOQ
25tons
Spangle
Normal Spangle,Mini Spangle,Big Spangle
Certificate
SGS
Application
uilding, Roofing sheet, safety fence and so on.






Roofs Applied DX51D+Z Galvanized Steel Coils and Sheets



Brief Introduction

Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.

The Protection Principle

1. Anodic reaction: Zn-2e=Zn2+

(The alloy coating loses electron, sacrificing itself in dissolution.)

2. Cathodic reaction: Fe2++2e=Fe

(Fe gains electron reaction, being protected)



Specification

1. Thickness: 0.15-4.0mm

2. Width: 600-1500mm

3. Inner Diameter: 508mm

4. Weight of Steel Coil: 3-18MT

5. Coating Type: Pure Zinc

6. Available Dipped Layer: 50-275g/m2

7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle

8. Available Surface Treatment: Passivating & Oiling & AFP & Filming



Mechanical Properties



Grades

Mechanical Property

Coating Adhesion

Yield StrengthMPa

Tensile StrengthMPa

Elongation%

Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness)

La=80mm b=20(mm)

At Following nominal Thickness ( mm)

≤0.7

>0.7

≤140/140

>140/140-175/175

>175/175

DX51D+Z

140-350

270-500

20

22

0a

1a

2a

DX52D+Z

140-300

270-420

24

26

0a

1a

2a

DX53D+Z

140-260

270-380

28

30

0a

1a

2a





Application

1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds

2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts

3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway

4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine



Superiority

1. Good Resistance to Corrosion

2. Qualified Processing Machinability

3. High Thermal Resistance

4. Excellent Reflectivity

5. Inexpensive and effective enough

6. Can be recycled and reused multiple times
