DX51D SGCC Coating Galvanized Steel Coil Cold Rolled For Roofing Sheet
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | Sincere |
| Certification | CE & SGS |
| Minimum Order Quantity | 25 MT |
| Price | US $ 600-800 / MT |
| Packaging Details | Standard seaworthy packing for international delivery |
| Delivery Time | 10-30 days |
| Payment Terms | T/T or L/C |
| Supply Ability | 10000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM,BS,DIN,JIS, EN | Width | 600-1500mm |
|---|---|---|---|
| Thickness | 0.15-4.0mm | Type | Steel Coil |
| Base Metal | CS | Inner Diameter | 610mm |
| High Light | SGCC Coating Galvanized Steel Coil,DX51D Cold Rolled Galvanized Steel Coil,4.0mm SGCC Galvanized Steel Coil |
||
Product Description

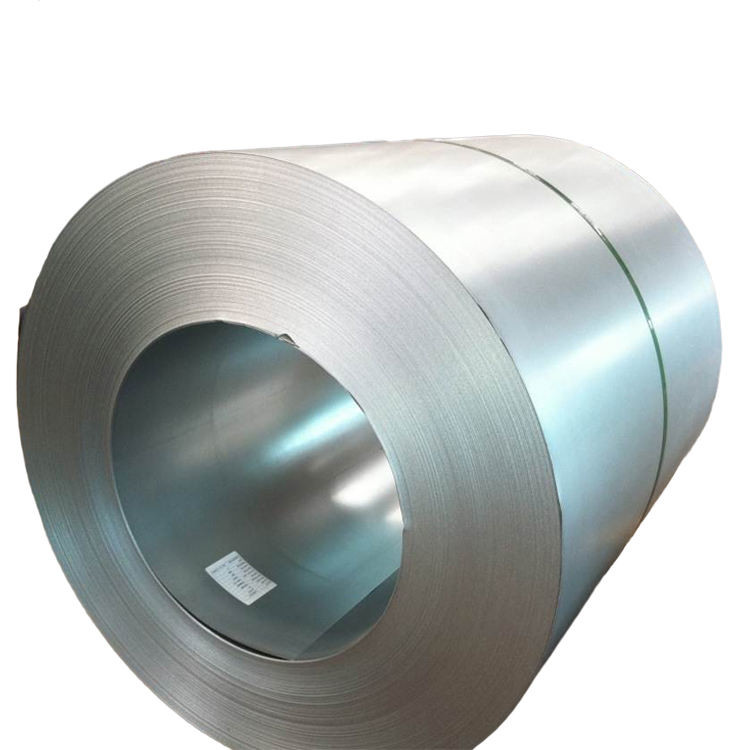

DX51D SGCC coating cold rolled galvanized steel coil for roofing sheet
Brief Introduction
Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.
|
Thickness
|
0.13-3.0mm
|
|
Width
|
Galvanized steel strip:24-600 mm; galvanized steel coil:600-1250mm
|
|
Coil weight
|
Usually is 3-4.5 tons,the max coil is 10 tons
|
|
Zn coating
|
0.13-0.8 mm is 30-150 g/m2; 0.8-1.5 mm is 30-180 g/m2;1.5-6.0 mm is 30-275 g/m2
|
|
Coil ID
|
600-1500 mm,Normal width is 91 4/1000/1219/1250/1500 mm
|
|
Steel grade
|
DX51D,DX52D,DC01,DC02,SGHC
|
|
Surface
|
regular/mini/big/zero spangle,skin pass, chromated, unoiled, dry
|
|
Packaging
|
seaworthy export standard package, or according to the customers’requirement
|
|
Delivery time
|
With 15 –25 days after receipt of deposit or L/C
|
|
Market
|
North/South America, Europe, Asia,Africa,Mid East
|
|
Productivity
|
2000 Metric ton /month
|
Specification
1. Thickness: 0.15-4.0mm
2. Width: 600-1500mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-18MT
5. Coating Type: Pure Zinc
6. Available Dipped Layer: 50-275g/m2
7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle
8. Available Surface Treatment: Passivating & Oiling & AFP & Filming
Mechanical Properties
|
Grades |
Mechanical Property |
Coating Adhesion |
|||||
|
Yield StrengthMPa |
Tensile StrengthMPa |
Elongation% ≥ |
Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness) |
||||
|
La=80mm b=20(mm) |
|||||||
|
At Following nominal Thickness ( mm) |
|||||||
|
≤0.7 |
>0.7 |
≤140/140 |
>140/140-175/175 |
>175/175 |
|||
|
CS Type C |
140-350 |
270-500 |
20 |
22 |
0a |
1a |
2a |
|
CS Type A, Type B |
140-300 |
270-420 |
24 |
26 |
0a |
1a |
2a |
|
FS Type A, Type B |
140-260 |
270-380 |
28 |
30 |
0a |
1a |
2a |
Application
1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds
2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts
3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway
4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine
