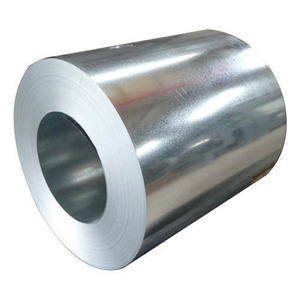

Cold Rolled Q195 Galvanized Steel Coil Corrosion Resistance
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | Sincere |
| Certification | CE & SGS |
| Minimum Order Quantity | 25 MT |
| Price | US $ 600-800 / MT |
| Packaging Details | Standard seaworthy packing for international delivery |
| Delivery Time | 10-30 days |
| Payment Terms | T/T or L/C |
| Supply Ability | 10000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Galvanized Steel Coil | Technique | Cold Rolled |
|---|---|---|---|
| Surface Treatment | Galvanized | Width | 600-1500mm |
| Application | Construction & Base Metal | Available Dipped Layers | 50-275g/m2 |
| Highlight | Q195 Galvanized Steel Coil,Q195 prepainted gi steel coil,Q195 steel galvanized coil |
||
Product Description
Galvanized Steel Coil SGCC DX51D And Q195 Ppgi Sheets Galvanized Steel Coil
Quick Details
- Standard:ASTM,BS,DIN,JIS, EN
- Grade:SGCC
- Thickness:0.15-4.0mm
- Place of Origin:China (Mainland)
- Brand Name: Sincere
- Model Number:SGCC
- Type:Steel Coil
- Length:Steel Coil
- Description:Galvanized Steel Coil
- Inner Diameter:508-610mm
- Available Surface Treatment:Passivating & Oiling & AFP & Filming
- HS Code:72104900
- Approved Certificate:CE & SGS
Specifications
Galvanized Steel Coil
1.ISO9001 approved
2.High adhesivenees and preciseness
3.Excellent mechanical property
Wet Concrete Applicable Galvanized Coil
Brief Introduction
Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.
The Protection Principle
1. Anodic reaction: Zn-2e=Zn2+
(The alloy coating loses electron, sacrificing itself in dissolution.)
2. Cathodic reaction: Fe2++2e=Fe
(Fe gains electron reaction, being protected)
Specification
1. Thickness: 0.15-4.0mm
2. Width: 600-1500mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-18MT
5. Coating Type: Pure Zinc
6. Available Dipped Layer: 50-275g/m2
7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle
8. Available Surface Treatment: Passivating & Oiling & AFP & Filming
Mechanical Properties
|
Grades |
Mechanical Property |
Coating Adhesion |
|||||
|
Yield StrengthMPa |
Tensile StrengthMPa |
Elongation% ≥ |
Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness) |
||||
|
La=80mm b=20(mm) |
|||||||
|
At Following nominal Thickness ( mm) |
|||||||
|
≤0.7 |
>0.7 |
≤140/140 |
>140/140-175/175 |
>175/175 |
|||
|
SGCC SGHC |
140-350 |
270-500 |
20 |
22 |
0a |
1a |
2a |
|
SGCD1 |
140-300 |
270-420 |
24 |
26 |
0a |
1a |
2a |
|
SGCD2 SGCD3 |
140-260 |
270-380 |
28 |
30 |
0a |
1a |
2a |
Superiority
1. Good Resistance to Corrosion
2. Qualified Processing Machinability
3. High Thermal Resistance
4. Excellent Reflectivity
5. Inexpensive and effective enough
6. Can be recycled and reused multiple times
