Mechanical Property Galvalume Steel Coil AZ , High Corrosion Resistance

Place of Origin JiangSu, China
Brand Name Sincere
Certification CE & SGS
Minimum Order Quantity 25 MT
Price US $700/MT -- US $900/MT

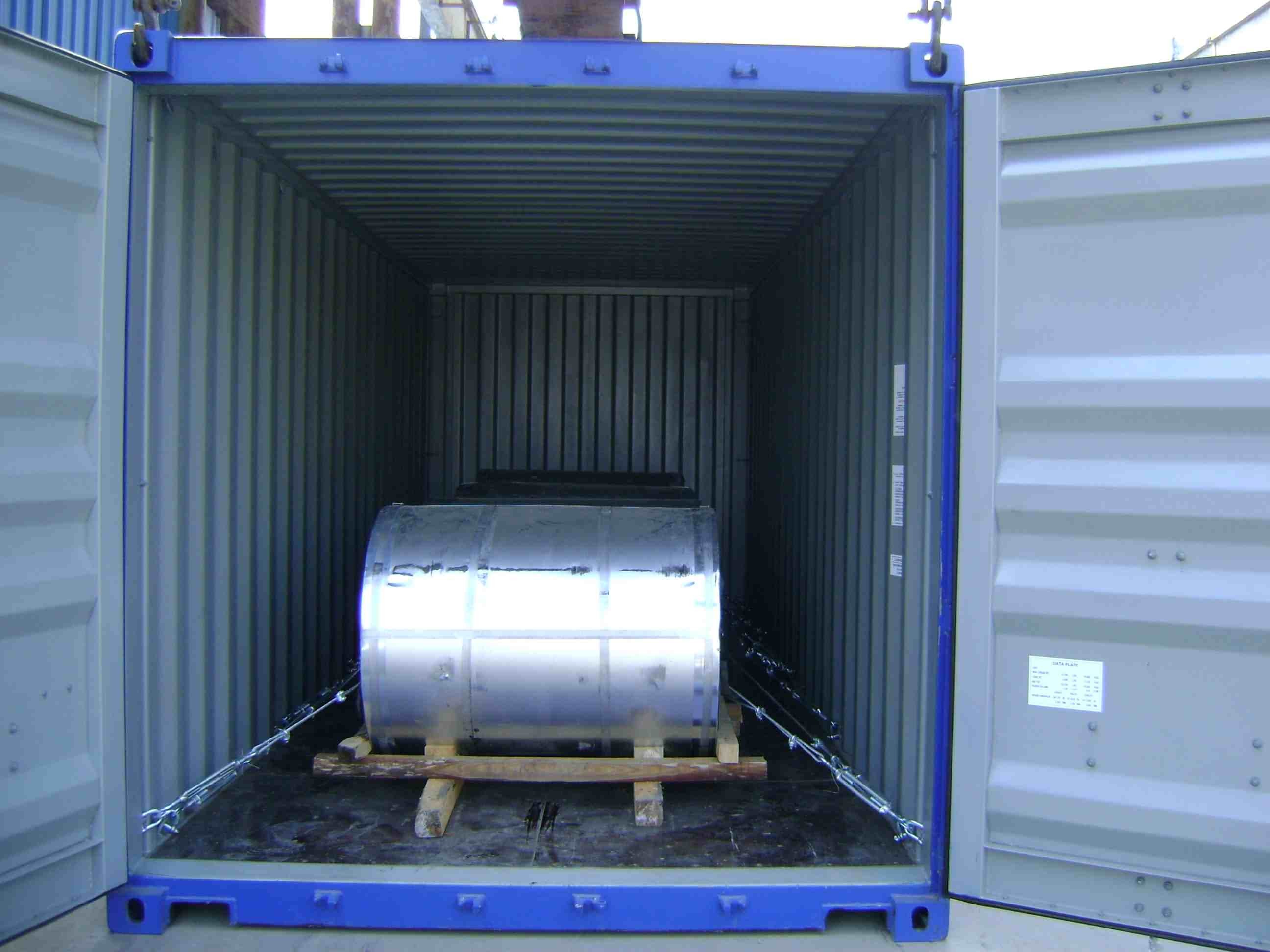

Packaging Details Standard seaworthy packing for international delivery
Delivery Time 15-30 Days
Payment Terms T/T or L/C
Supply Ability 10000 MT per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Cold Rolled Coil Thickness 0.15-1.5mm
Technique Cold Rolled Surface Treatment Galvalume
Application Construction & Base Metal Width 600-1250mm
High Light

galvalume steel coil

,

galvalume steel galvalume steel

Leave a Message
Product Description



Mechanical Property Galvalume Steel Coil AZ , High Corrosion Resistance



Quick Details

  • Standard:ASTM,EN,JIS
  • Grade:CS type B,type C
  • Place of Origin:Jiangsu, China (Mainland)
  • Brand Name: Sincere
  • Model Number: CS type B,type C
  • Type:Steel Coil
  • Length:Steel Coil
  • Description:HDGL
  • Base Metal:CS
  • Available Dipped Layers:50-275G/M2
  • Inner Diameter:508-610mm
  • Available Surface Treatment:Passivating & Oiling & AFP & Filming
  • HS Code:72106100
  • Approved Certificate:CE & SGS

Specifications


Specification
1. Thickness: 0.15-1.5mm
2. Width: 600-1250mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-15MT
5. Coating Type: Al-Zn Alloy
6. Available Dipped Layer: 50-275g/m2
7. Surface Finish Structure: Regular Spangle & Small Spangle & Zero Spangle
8. Available Surface Treatment: Passivating & Oiling & AFP & Filming
Mechanical Properties

Grade

Tension Test

Yield Strength (MPa)

Tensile Strength (MPa)

Elongation% No Less Than

A80mm

CS type B type C

--

<500

22-24

DS

<300

<420

24-26

255

>250

>320

22

345 Class1

>350

>420

14

550

>550

>570 --


Application
1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds
2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts
3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway
4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine
Superiority
1. Resistance to Corrosion Has better performance in corrosion resistance than hot dip galvanized coil/sheet of the same thickness and its service life is 1-5 times longer than general hot dip galvanized coil/sheet.
2. Machinability Can satisfy the processing requirements of rolling, coiling and others processes alike.
3. Thermal Resistance Can sustain the environment at 315°C for long time.
4. High Reflectivity Reflection ability of heat and light is twice as much as those of hot dip galvanized steel coil/sheet, and its reflectivity is more than 0.75, exceeding 0.65 (required by the EPA Energy Star Standard), which is an ideal construction material of saving energy
