Slitting SGCH (Full hard) EN 10147 Hot Dip Galvanized Steel Strip For Constructual Purlins

Slitting SGCH (Full hard) EN 10147 Hot Dip Galvanized Steel Strip For Constructual Purlins
Slitting SGCH (Full hard) EN 10147 Hot Dip Galvanized Steel Strip For Constructual Purlins

Large Image :  Slitting SGCH (Full hard) EN 10147 Hot Dip Galvanized Steel Strip For Constructual Purlins

Product Details:

Place of Origin: China
Brand Name: Sincere
Certification: ISO14000
Model Number: N/A

Payment & Shipping Terms:

Minimum Order Quantity: 25 MT
Packaging Details: Standard export packing
Delivery Time: 35 Days
Payment Terms: TT / LC
Supply Ability: 10000 MT per month
Detailed Product Description
High Light:

welding galvanized steel

,

stainless steel galvanized steel

Slitting SGCH (Full hard) EN 10147 Hot Dip Galvanized Steel Strip For Constructual Purlins





Hot Dipped Galvanized Steel Sheet in Coil (GI) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface.
It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristic. Usually hot dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.



1) Specification:

a. Thickness: 0.15-3.8mm

b. Width: Min 12mm, Max 700mm

c. Spangle: Regular, Minimized or Zero

d. Inner diameter: 508mm or 610mm

e. Double size galvanized 60-275g /m2.

f. Surface treatment:Chromated, dry or oiled, cr3 treated

g. Skinnpassed: If required

h.Tension levelling: Continuously

2) Steel Grade: DX51, SGCC, SGCD, SGCE, SGCH(Full hard), Q195, SGC490, ASTM A653, Cs-B, S280, S320, S350, S380, DQ, DDQ or equvalents

3). Standard: JIS G3302, ASTM A653, EN 10147

4). Package: with edge protector, steel hoop and seals, Export wrapped ID and OD protection or as per customers' requirements

5). Applications: Profiles, purlins and other basic constructual enduses.

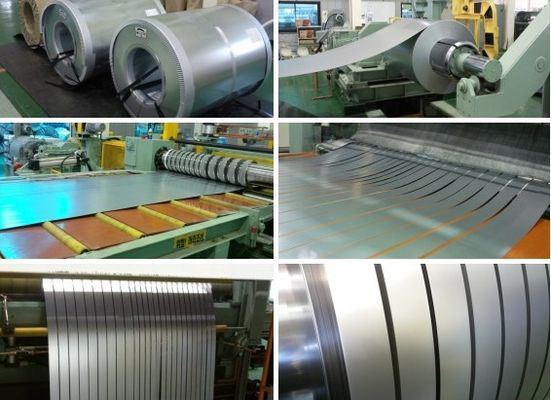

6). Cutting and slitting can be requested as customer's designation.
