CS Type C Galvanized Steel Coil , High Thermal Resistance

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xTechnique | Cold Rolled | Surface Treatment | Galvanized |
---|---|---|---|
Standard | ASTM,BS,DIN,JIS, EN | Grade | CS Type C |
Brand Name | Sincere | Application | Construction & Base Metal |
Highlight | galvanized steel sheets,galvanized steel roof panels |

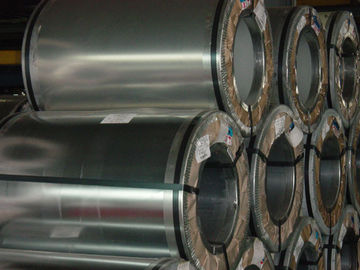

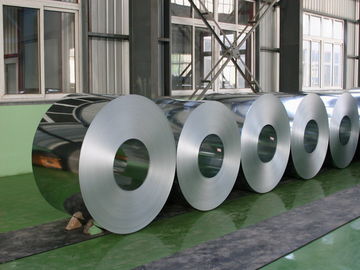

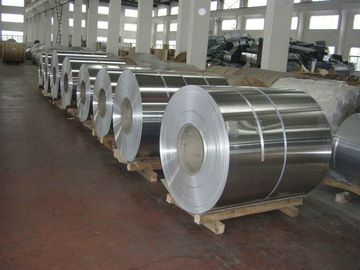

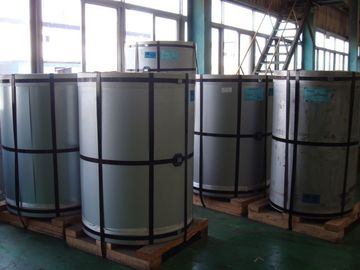

CS Type C Galvanized Steel Coil For Construction / Base Metal , High Thermal Resistance
Quick Details
- Thickness:0.15-4.0mm
- Place of Origin:China (Mainland)
- Model Number:CS Type C
- Type:Steel Coil
- Width:600-1500mm
- Length:Steel Coil
- Description:Galvanized Steel Coil
- Base Metal: CS
- Available Dipped Layers:50-275g/m2
- Inner Diameter:508-610mm
- Available Surface Treatment:Passivating & Oiling & AFP & Filming
- HS Code:72104900
- Approved Certificate:CE & SGS
Specifications
Galvanized Steel Coil
1.ISO9001 approved
2.High adhesivenees and preciseness
3.Excellent mechanical property
Good Thermal Resistance Machinability Galvanized Steel Coils
Brief Introduction
Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.
The Protection Principle
1. Anodic reaction: Zn-2e=Zn2+
(The alloy coating loses electron, sacrificing itself in dissolution.)
2. Cathodic reaction: Fe2++2e=Fe
(Fe gains electron reaction, being protected)
Specification
1. Thickness: 0.15-4.0mm
2. Width: 600-1500mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-18MT
5. Coating Type: Pure Zinc
6. Available Dipped Layer: 50-275g/m2
7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle
8. Available Surface Treatment: Passivating & Oiling & AFP & Filming
Mechanical Properties
Grades |
Mechanical Property |
Coating Adhesion |
|||||
Yield StrengthMPa |
Tensile StrengthMPa |
Elongation% ≥ |
Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness) |
||||
La=80mm b=20(mm) |
|||||||
At Following nominal Thickness ( mm) |
|||||||
≤0.7 |
>0.7 |
≤140/140 |
>140/140-175/175 |
>175/175 |
|||
CS Type C |
140-350 |
270-500 |
20 |
22 |
0a |
1a |
2a |
CS Type A, Type B |
140-300 |
270-420 |
24 |
26 |
0a |
1a |
2a |
FS Type A, Type B |
140-260 |
270-380 |
28 |
30 |
0a |
1a |
2a |
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a professional steel exporter, we offer promote technology support for all problems and questions.
Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products,
Modern always makes a serious inspection for all products and raw materials in strict procedure.
