DX51D+Z Galvanized Steel Coil , Galvanized Iron Sheets / Coils For Garage Doors

Certification
Good quality Hot Dip Galvanized Steel Coil for sales
I'm Online Chat Now

DX51D+Z Galvanized Steel Coil , Galvanized Iron Sheets / Coils For Garage Doors

China DX51D+Z Galvanized Steel Coil , Galvanized Iron Sheets / Coils For Garage Doors supplier
DX51D+Z Galvanized Steel Coil , Galvanized Iron Sheets / Coils For Garage Doors supplier DX51D+Z Galvanized Steel Coil , Galvanized Iron Sheets / Coils For Garage Doors supplier DX51D+Z Galvanized Steel Coil , Galvanized Iron Sheets / Coils For Garage Doors supplier

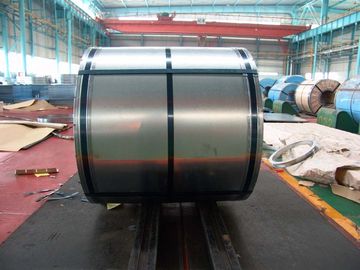

Large Image :  DX51D+Z Galvanized Steel Coil , Galvanized Iron Sheets / Coils For Garage Doors

Product Details:

Place of Origin: China (Mainland)
Brand Name: Sincere
Certification: CE & SGS

Payment & Shipping Terms:

Minimum Order Quantity: 25 MT
Price: US $ 600-800 / MT
Packaging Details: Standard seaworthy packing for international delivery
Delivery Time: 10-30 days
Payment Terms: T/T or L/C
Supply Ability: 10000 Ton/Tons per Month
Contact Now
Detailed Product Description
Name: Cold Rolled Coil Place Of Origin: China (Mainland)
Thickness: 0.15-4.0mm Surface Treatment: Galvanized
Application: Construction & Base Metal Width: 600-1500mm

DX51D+Z Galvanized Steel Coil , Galvanized Iron Sheets / Coils For Garage Doors

Quick Details



  • Standard:ASTM,BS,DIN,JIS, EN
  • Grade:DX51D+Z
  • Thickness:0.15-4.0mm
  • Place of Origin:China (Mainland)
  • Brand Name: Sincere
  • Model Number:DX51D+Z
  • Type:Steel Coil
  • Technique:Cold Rolled
  • Surface Treatment:Galvanized
  • Application:Construction & Base Metal
  • Width:600-1500mm
  • Length:Steel Coil
  • Description:Galvanized Steel Coil
  • Base Metal:DC01
  • Available Dipped Layers:50-275g/m2
  • Inner Diameter:508-610mm
  • Available Surface Treatment:Passivating & Oiling & AFP & Filming
  • HS Code:72104900
  • Approved Certificate:CE & SGS

Specifications



Galvanized Steel Coil
1.ISO9001 approved
2.High adhesivenees and preciseness
3.Excellent mechanical property





Garage Doors Applied Galvanized Iron Sheets and Coils



Brief Introduction

Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.

The Protection Principle

1. Anodic reaction: Zn-2e=Zn2+

(The alloy coating loses electron, sacrificing itself in dissolution.)

2. Cathodic reaction: Fe2++2e=Fe

(Fe gains electron reaction, being protected)



Specification

1. Thickness: 0.15-4.0mm

2. Width: 600-1500mm

3. Inner Diameter: 508mm

4. Weight of Steel Coil: 3-18MT

5. Coating Type: Pure Zinc

6. Available Dipped Layer: 50-275g/m2

7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle

8. Available Surface Treatment: Passivating & Oiling & AFP & Filming



Mechanical Properties



Grades

Mechanical Property

Coating Adhesion

Yield StrengthMPa

Tensile StrengthMPa

Elongation%

Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness)

La=80mm b=20(mm)

At Following nominal Thickness ( mm)

≤0.7

>0.7

≤140/140

>140/140-175/175

>175/175

DX51D+Z

140-350

270-500

20

22

0a

1a

2a

DX52D+Z

140-300

270-420

24

26

0a

1a

2a

DX53D+Z

140-260

270-380

28

30

0a

1a

2a





About us



Our main products are steel products, such as Galvanized Steel Coil , Hot Dip Galvanized Steel Coil,Hot Dip Galvanized Steel Strip,Hot Dipped Galvanized Steel,Galvalume Steel Coils,Aluzinc Steel Coils,Cold Rolled Steel Coils,Cold Rolled Steel Sheets,ERW Steel Pipes,Stainless Steel Seamless Pipes,Prepainted Steel Coils,Welded Steel Pipes.We would be glad to welcome your enquries and will give you very fast feedback.





Superiority

1. Good Resistance to Corrosion

2. Qualified Processing Machinability

3. High Thermal Resistance

4. Excellent Reflectivity

5. Inexpensive and effective enough

6. Can be recycled and reused multiple times
