ASTM A653 Hot Dipped Galvanized Coil With Good Mechanical Property

Place of Origin China (Mainland)
Brand Name Sincere
Certification CE & SGS
Minimum Order Quantity 25 MT
Price US $ 600-800 / MT
Packaging Details Standard seaworthy packing for international delivery
Delivery Time 10-30 days
Payment Terms T/T or L/C
Supply Ability 10000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade CS Type C Thickness 0.15-4.0mm
Technique Cold Rolled Name Cold Rolled Steel Coil
High Light

galvanized steel sheets

,

galvanized steel roof panels

Leave a Message
Product Description

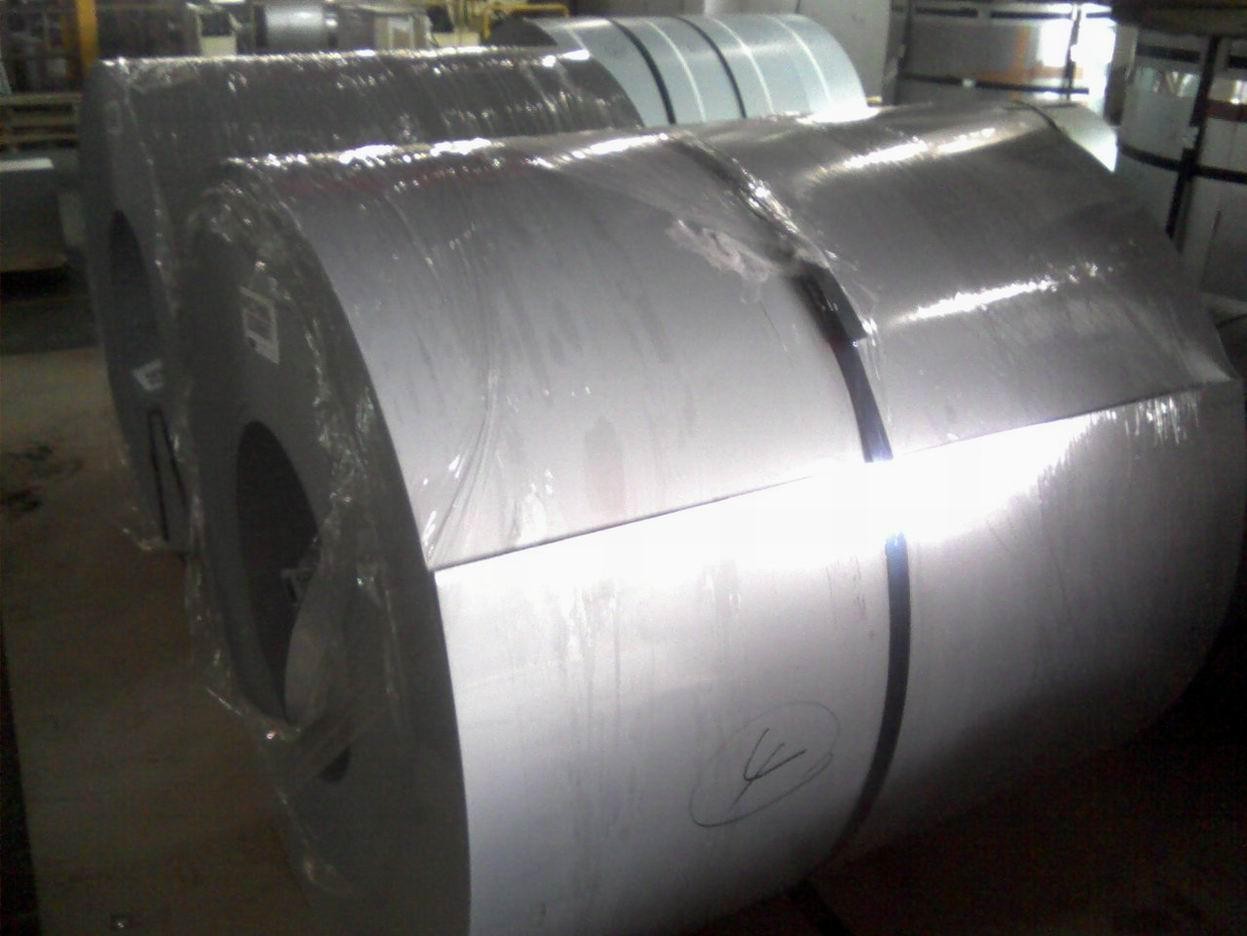

ASTM A653 Hot Dipped Galvanized Coil With Good Mechanical

Property

Quick Details

Specification

1. Thickness: 0.15-4.0mm

2. Width: 600-1500mm

3. Inner Diameter: 508mm

4. Weight of Steel Coil: 3-18MT

5. Coating Type: Pure Zinc

6. Available Dipped Layer: 50-275g/m2

7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle

8. Available Surface Treatment: Passivating & Oiling & AFP & Filming

Specifications



Galvanized Steel Coil
1.ISO9001 approved
2.High adhesivenees and preciseness
3.Excellent mechanical property




Good Mechanical Property ASTM A653 Standard Hot Dipped Galvanized Coil



Brief Introduction

Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.

The Protection Principle

1. Anodic reaction: Zn-2e=Zn2+

(The alloy coating loses electron, sacrificing itself in dissolution.)

2. Cathodic reaction: Fe2++2e=Fe

(Fe gains electron reaction, being protected)







Mechanical Properties



Grades

Mechanical Property

Coating Adhesion

Yield StrengthMPa

Tensile StrengthMPa

Elongation%

Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness)

La=80mm b=20(mm)

At Following nominal Thickness ( mm)

≤0.7

>0.7

≤140/140

>140/140-175/175

>175/175

CS Type C

140-350

270-500

20

22

0a

1a

2a

CS Type A, Type B

140-300

270-420

24

26

0a

1a

2a

FS Type A, Type B

140-260

270-380

28

30

0a

1a

2a



Application

1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds

2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts

3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway

4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine



Superiority

1. Good Resistance to Corrosion

2. Qualified Processing Machinability

3. High Thermal Resistance

4. Excellent Reflectivity

5. Inexpensive and effective enough

6. Can be recycled and reused multiple times
